SC  Tamagawa Takashimaya S.C. South Building Atrium Garden Renewal

二子玉川駅前に位置する玉川髙島屋S・C南館のファサードリニューアル計画。

街との関係性を再構築し、新たな地域のランドマークとして生まれ変わることを目指すプロジェクトです。

これまで南館のファサードは、2003年の増築時に設けられた半屋外空間のアトリウムガーデンと、それを覆う端正なアルミルーバーによって構成され、駅西側の落ち着いた街並みに呼応する静的な佇まいを見せていました。しかし、近年進む駅東側エリアの大規模開発に伴い、二子玉川全体の回遊性や賑わいが高まるなか、より動的で強い存在感と、駅西側エリアの回遊のハブとしての役割が求められるようになりました。

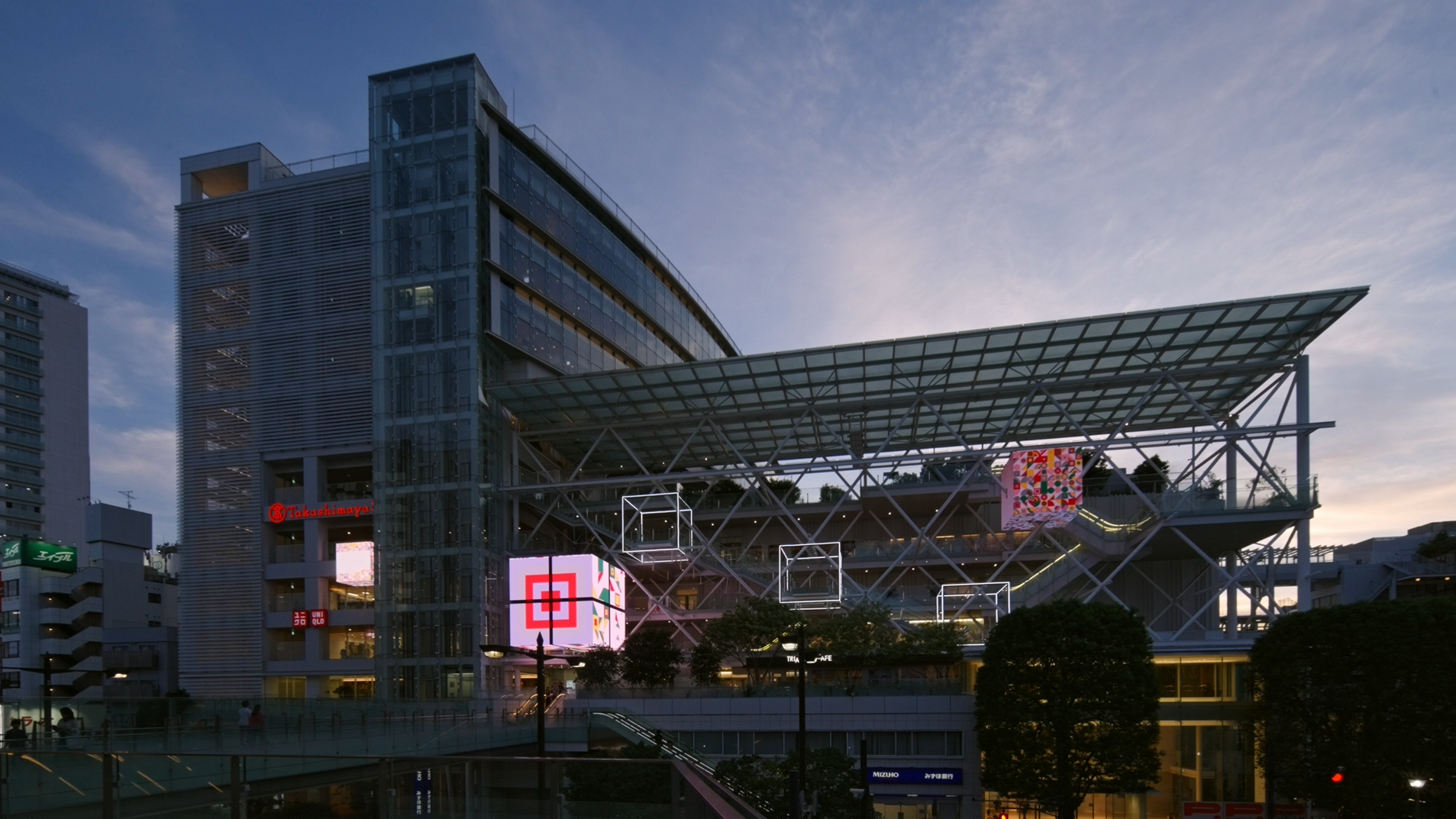

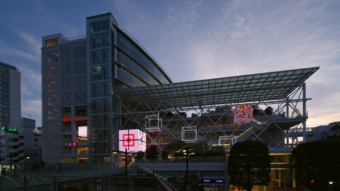

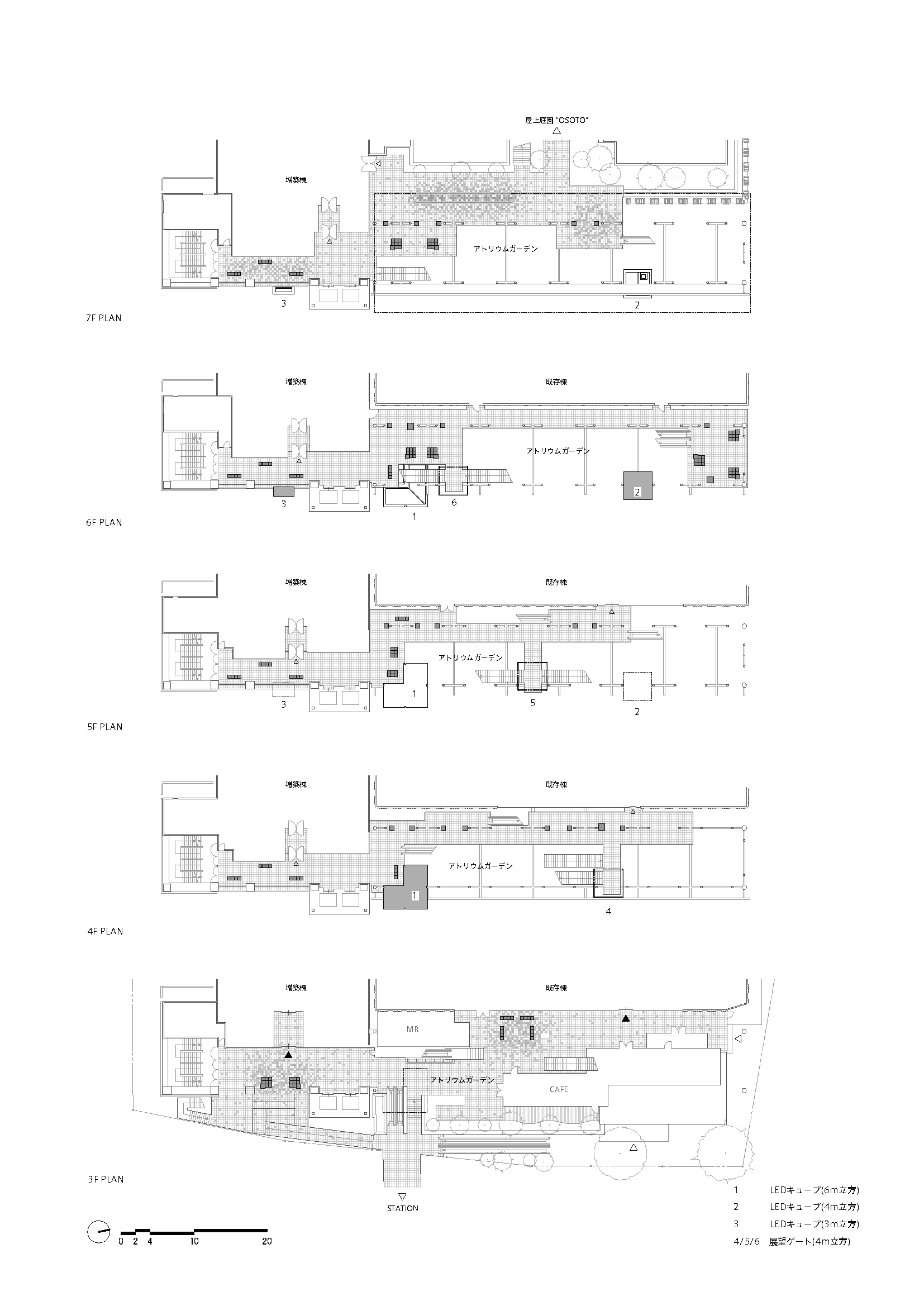

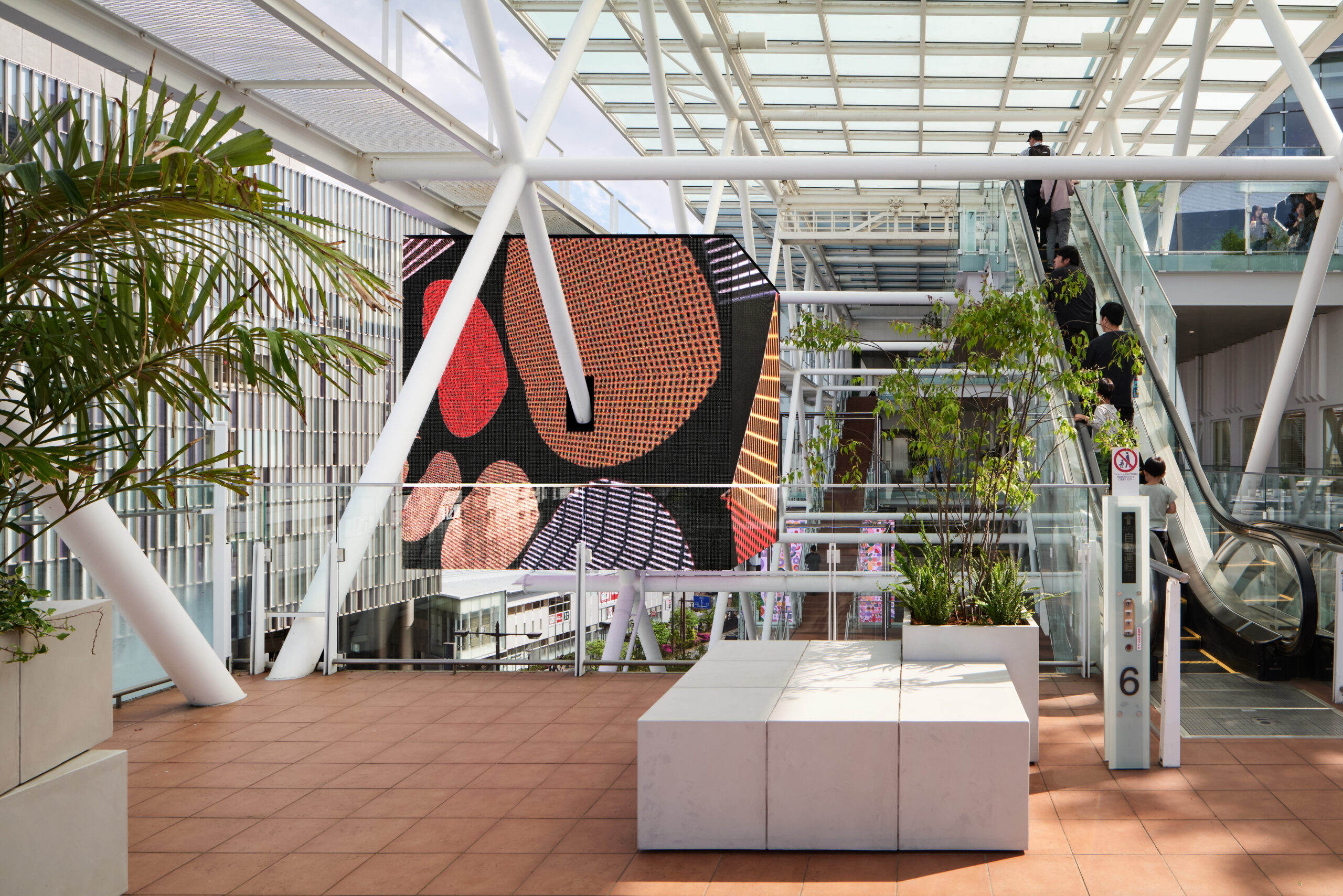

本計画では、アトリウムガーデンを覆っていた既存ルーバーを撤去し、その中に3・4・6m角のLEDとフレーム状の「キューブ」をあたかも重力から解放されたように浮かべ、空気の水槽のような奥行感のあるファサードとし、その中を人々が回遊し、街の賑わいが立体的に浮かびあがるようにしています。

LEDキューブは単に情報発信するだけでなく、時間帯・季節に応じてその表情が変化することで、建築自体が街と呼応するダイナミックなメディアとなることを意図しています。

またアトリウムガーデンを貫く階段の踊場を囲うように鉄骨フレーム状のキューブを配置して、街を眺めるための視点場あるいは舞台として再定義しました。「見る/見られる」という都市の劇場性を高め、街全体の賑わいに寄与することを意図しています。

さらに、その周囲に回り込んだり、その中をくぐり抜けたりと、キューブは人々の主体的な動きを喚起し、空間全体の回遊性・ダイナミズムの向上に寄与するだけでなく、その没入的な立体構成がファッションショー・マルシェ・縁日など多様な活動を受け入れるデバイスになり得ます。

ファサードのリニューアルという枠を超えて、建築の表層を固定的な境界「面」から動的な境界「領域」へと拡張し、都市との連続性や多様な活動を受け入れる余地を生み出すことを目指したプロジェクトです。

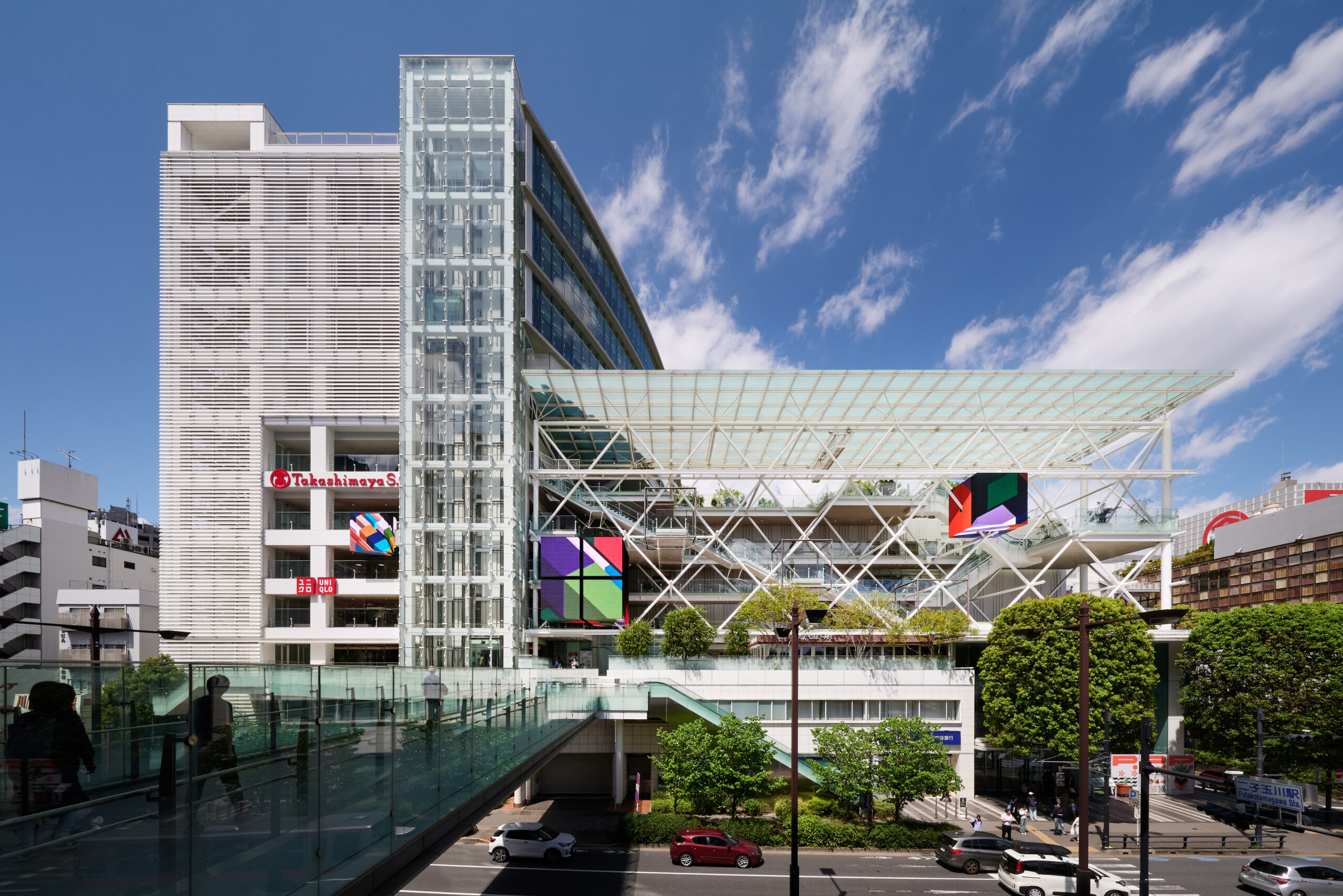

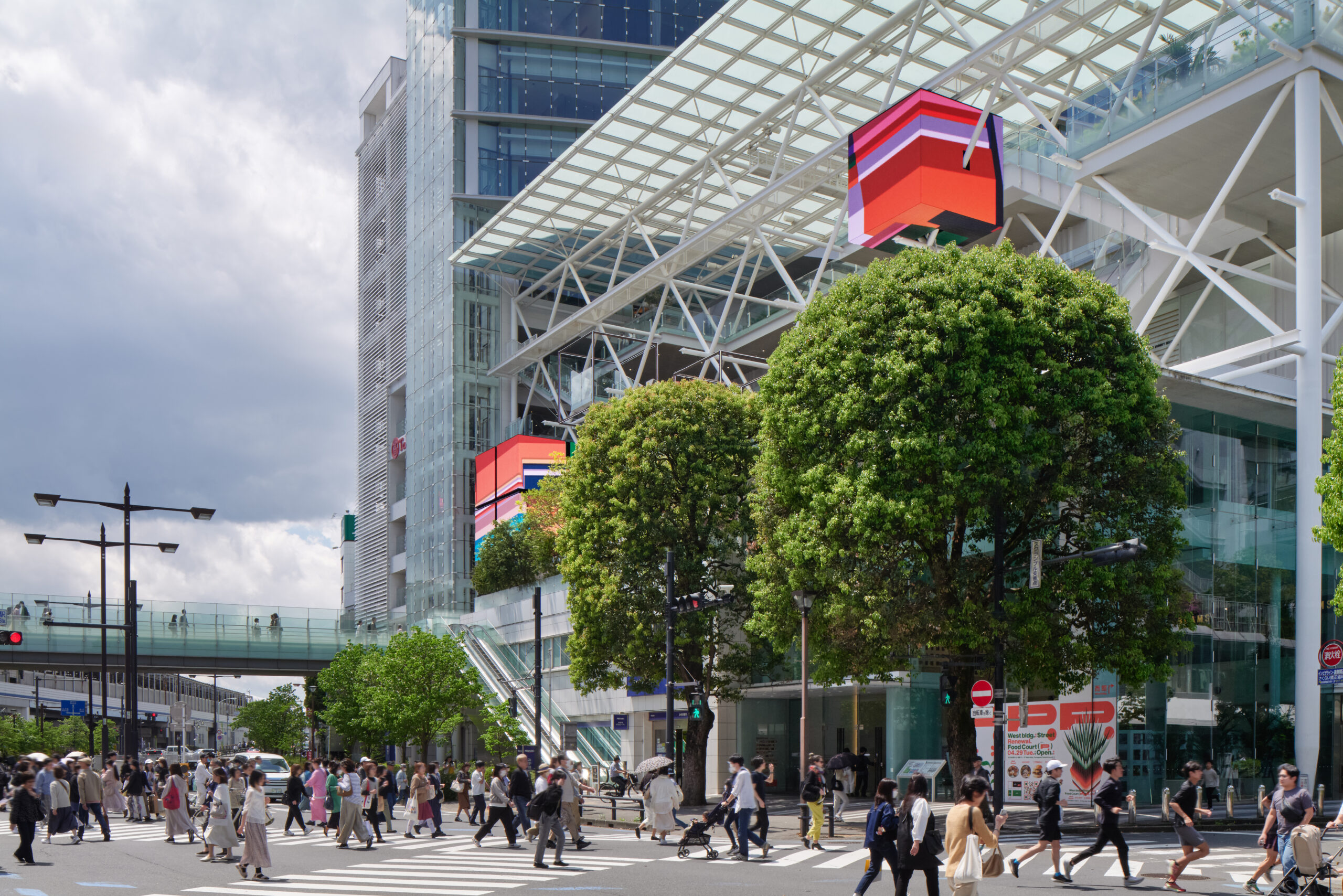

This project is the façade renewal of the Tamagawa Takashimaya S・C South Building, housing a department store located in front of Futako-Tamagawa Station.
The aim is to rebuild the building’s relationship with the city and turn it into a new landmark for the area.

The façade, prior to our renovation,  was created in the 2003 expansion of the department store.  It consisted of a semi-outdoor atrium garden covered by simple aluminum louvers. As large-scale developments across the street made Futako-Tamagawa more lively and connected to the train station.  The South Building with its louver façade needed more of an inviting presence facing the station.

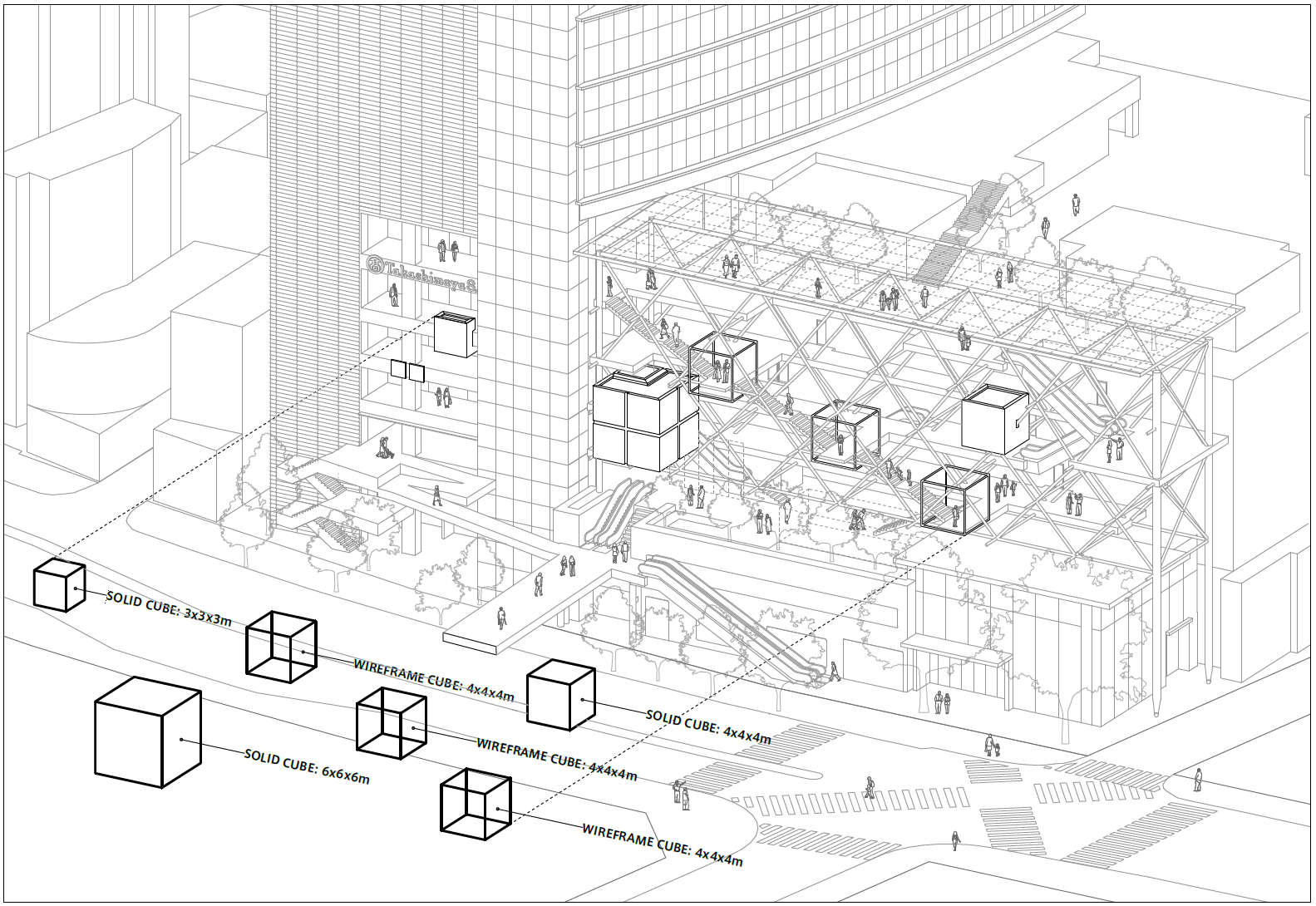

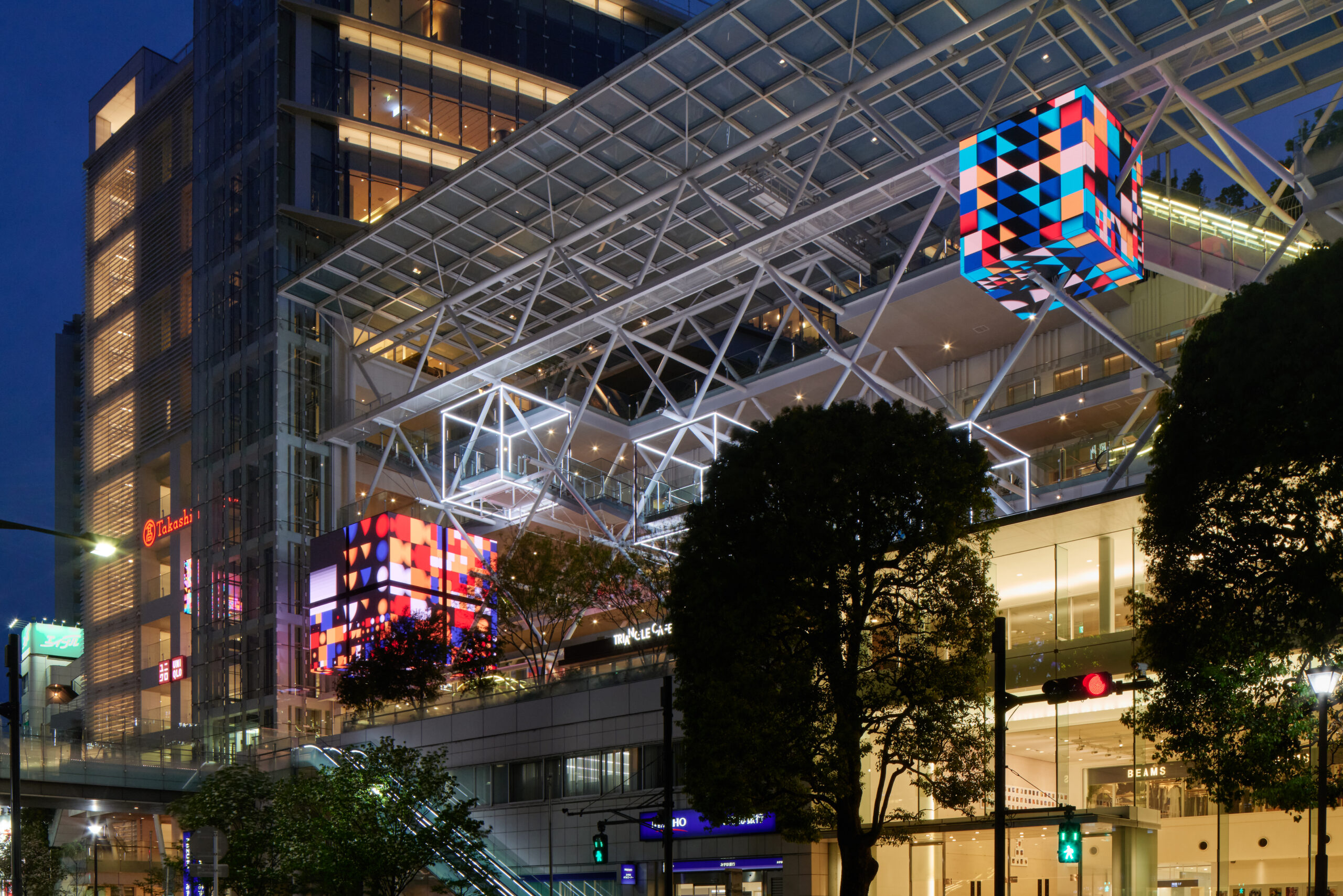

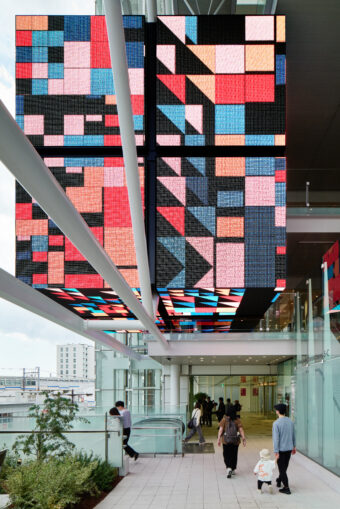

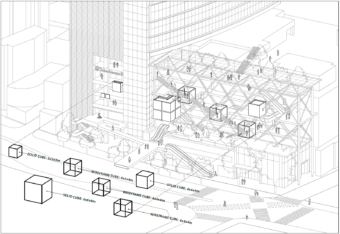

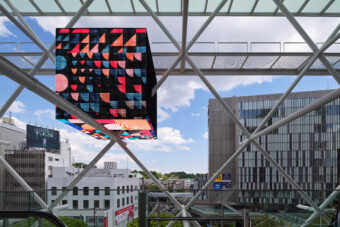

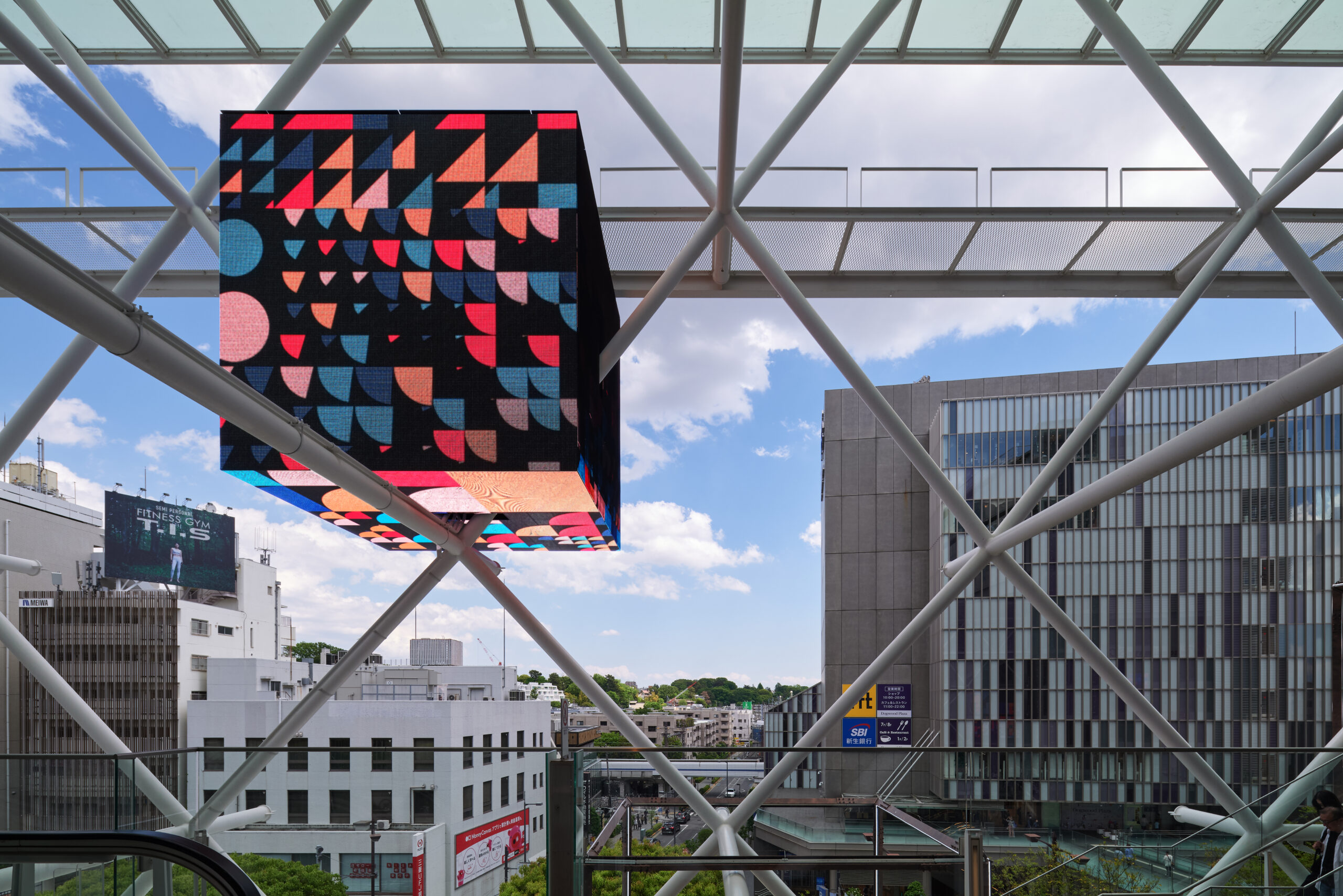

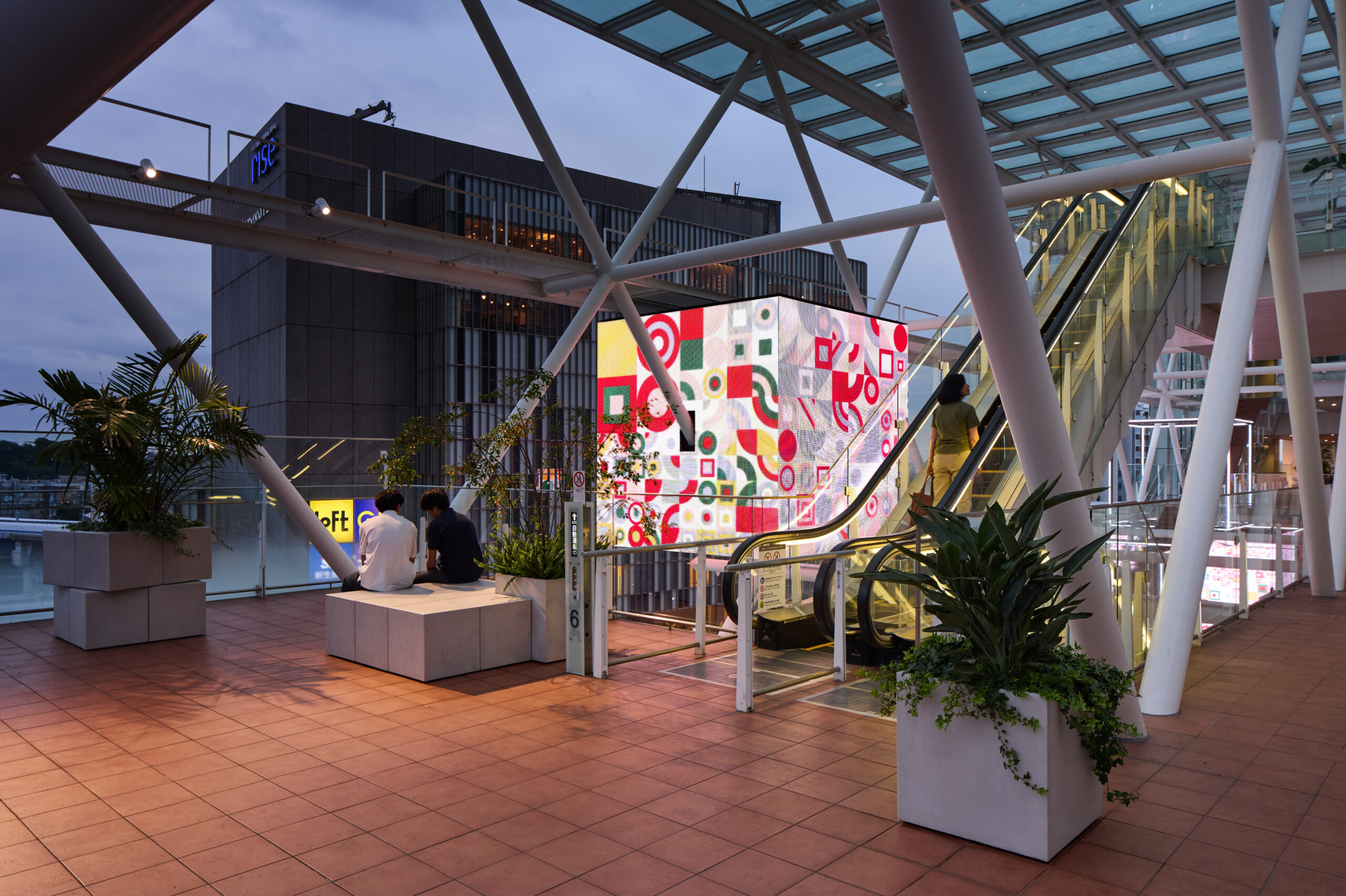

Our proposal, therefore, aimed to create a series of open terraces that attract pedestrians to cross a large street to the Futagotamagawa Takashimata department store.  We began by removing existing louvers, designed large cube-shaped frames—3, 4, and 6 meters in size—equipped with LED screens are suspended as if floating in space. The façade becomes a deep, layered surface, like an aquarium of air, where people move around and the energy of the city appears in three dimensions.

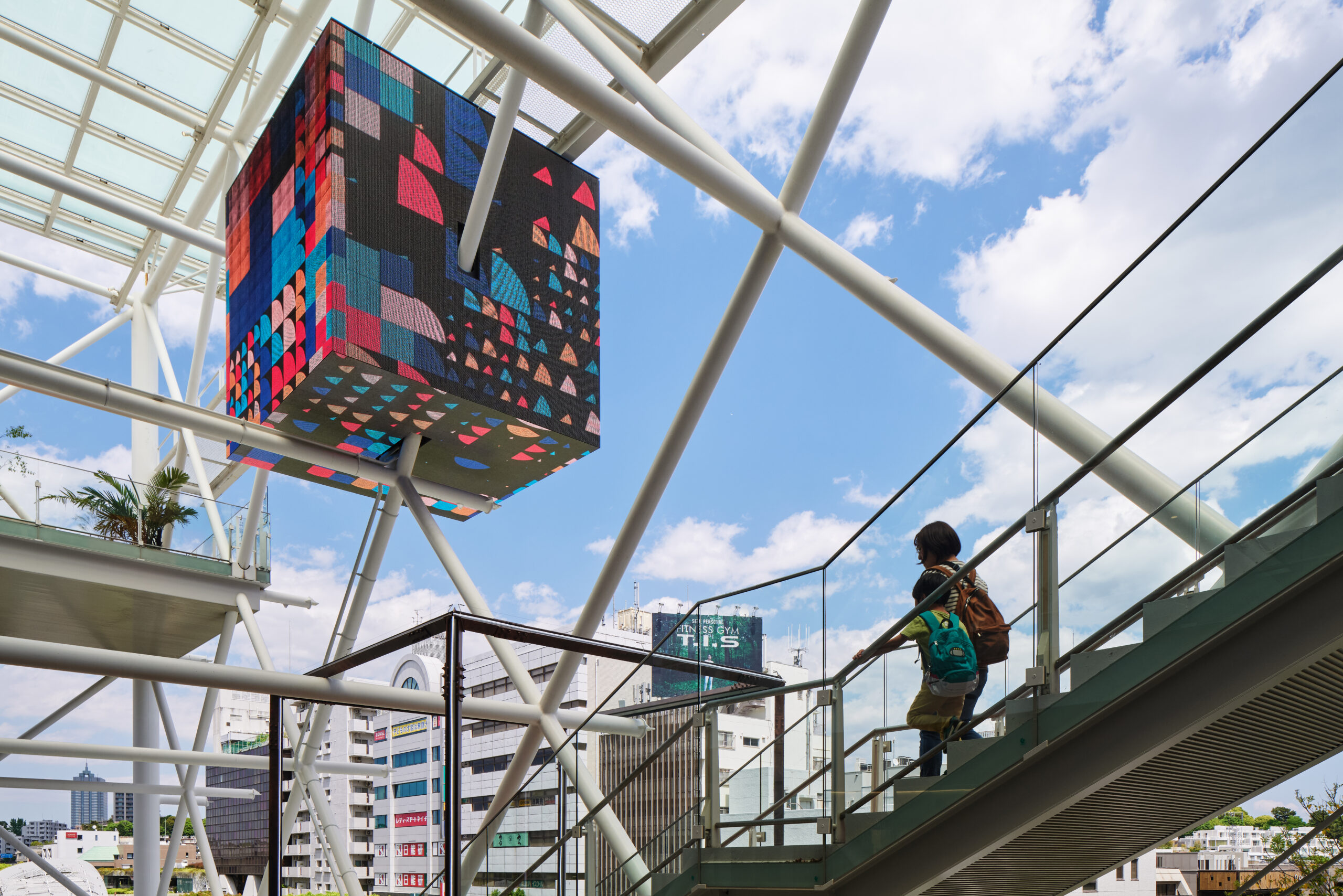

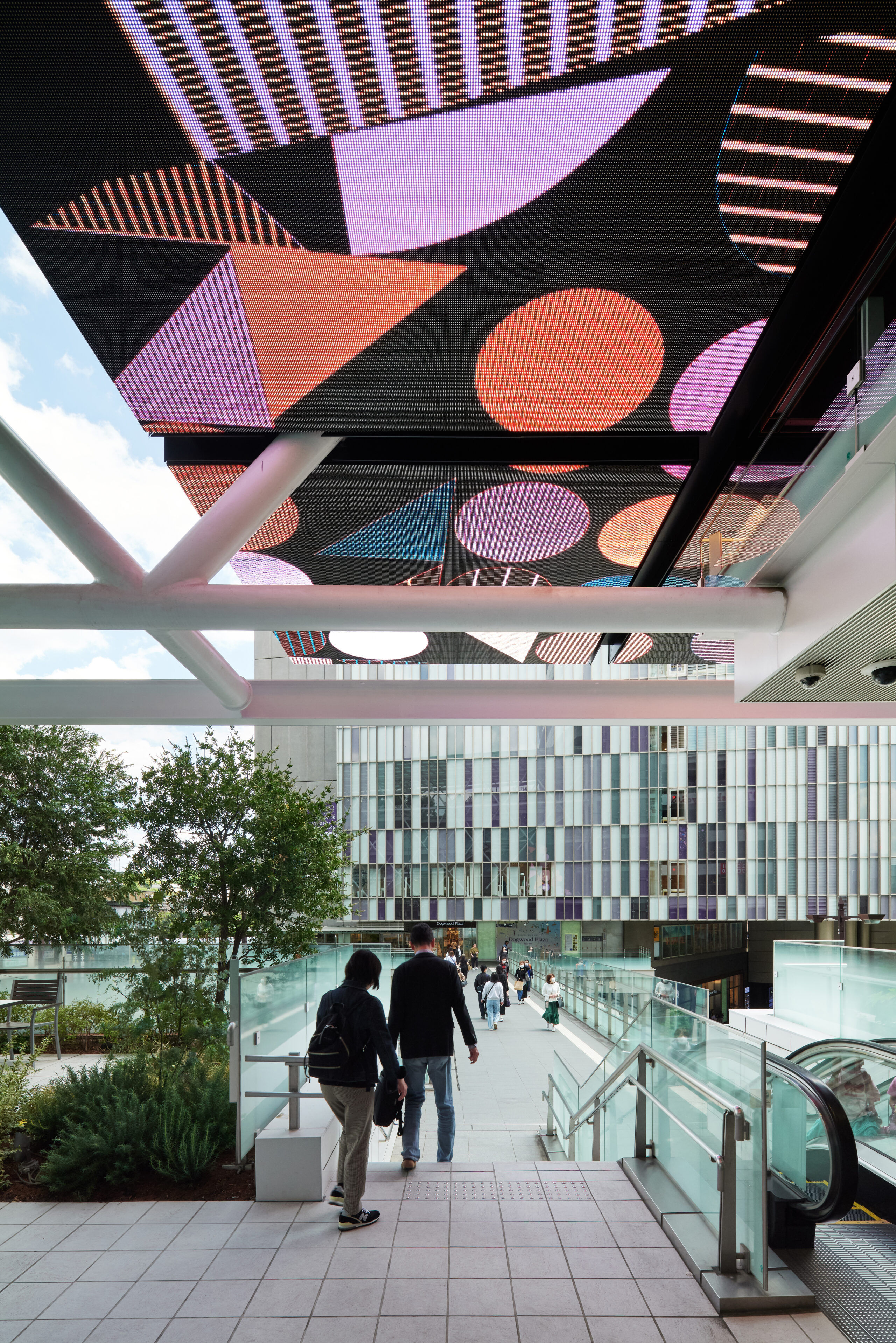

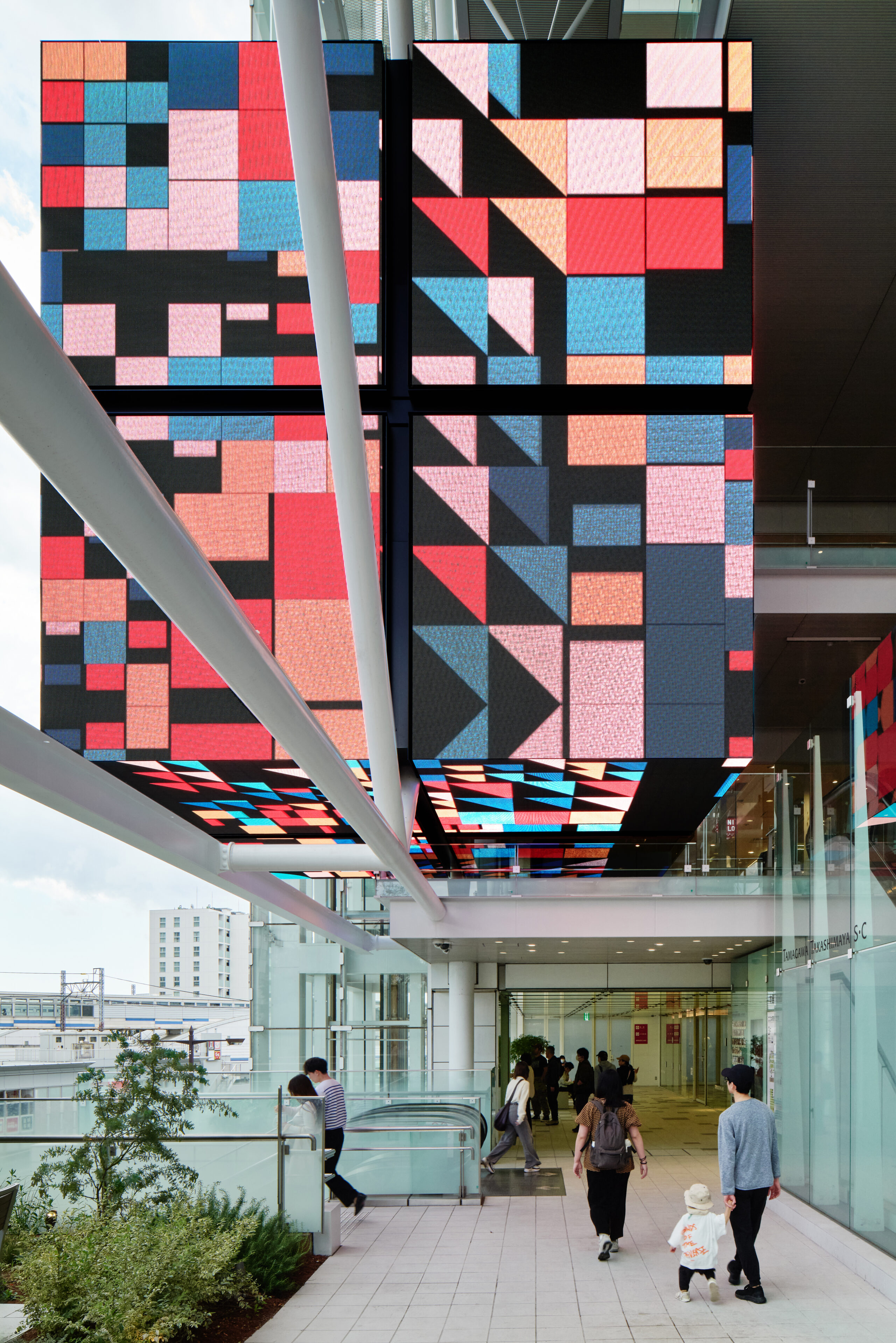

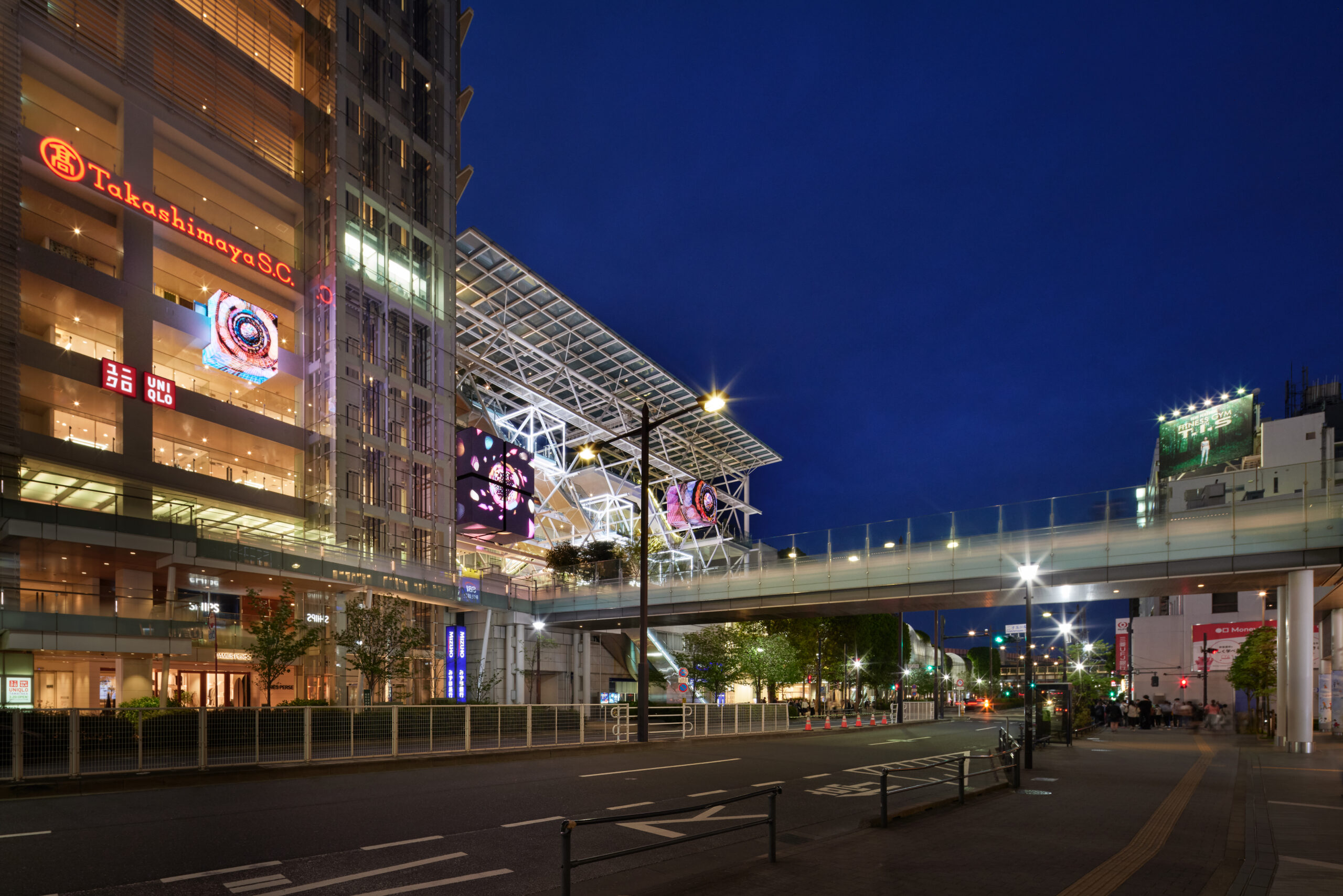

The LED cubes do more than show information. Their contents change with the time of day and season, so that the building itself responds to the city and becomes a dynamic medium of communication.

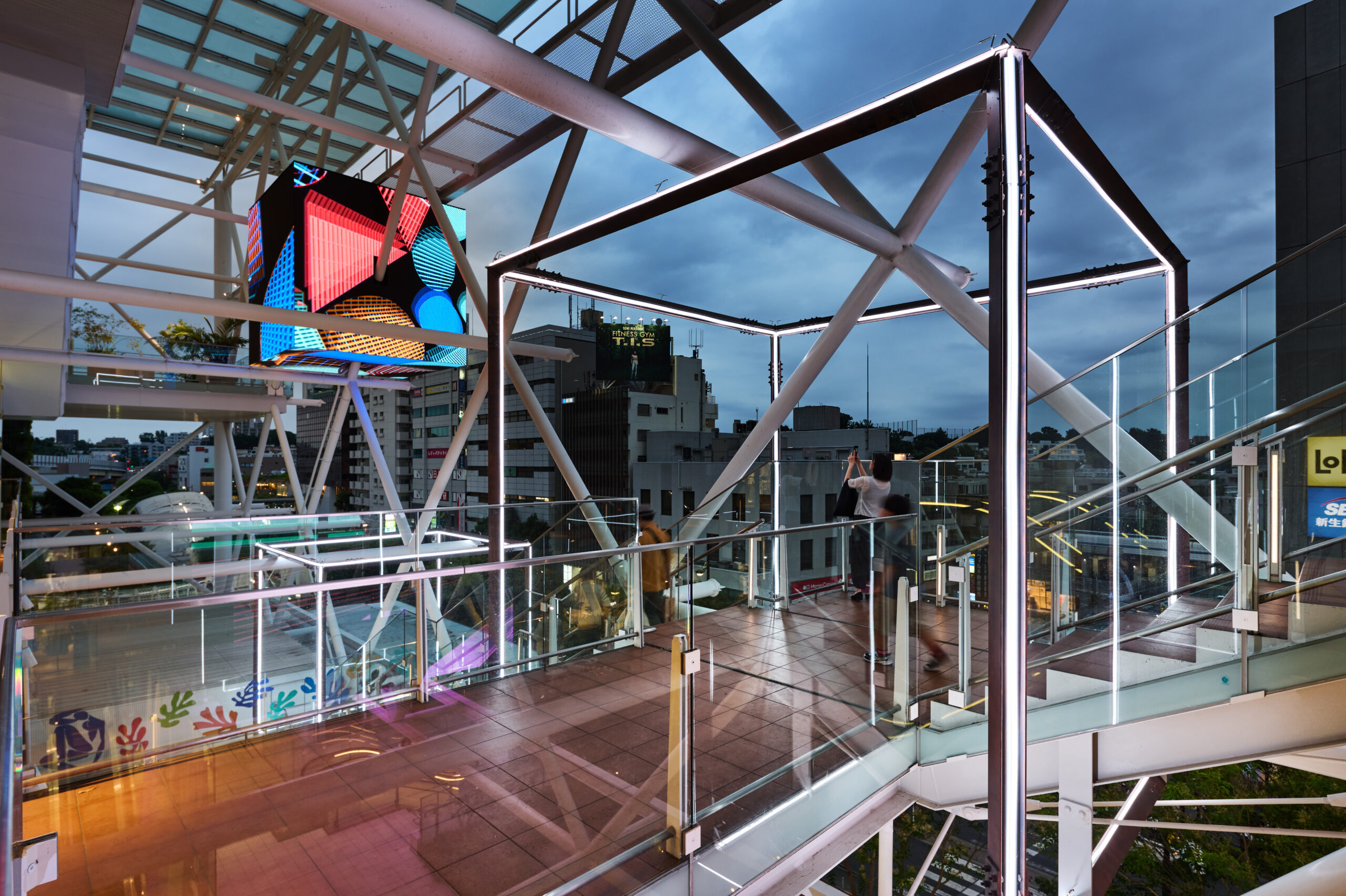

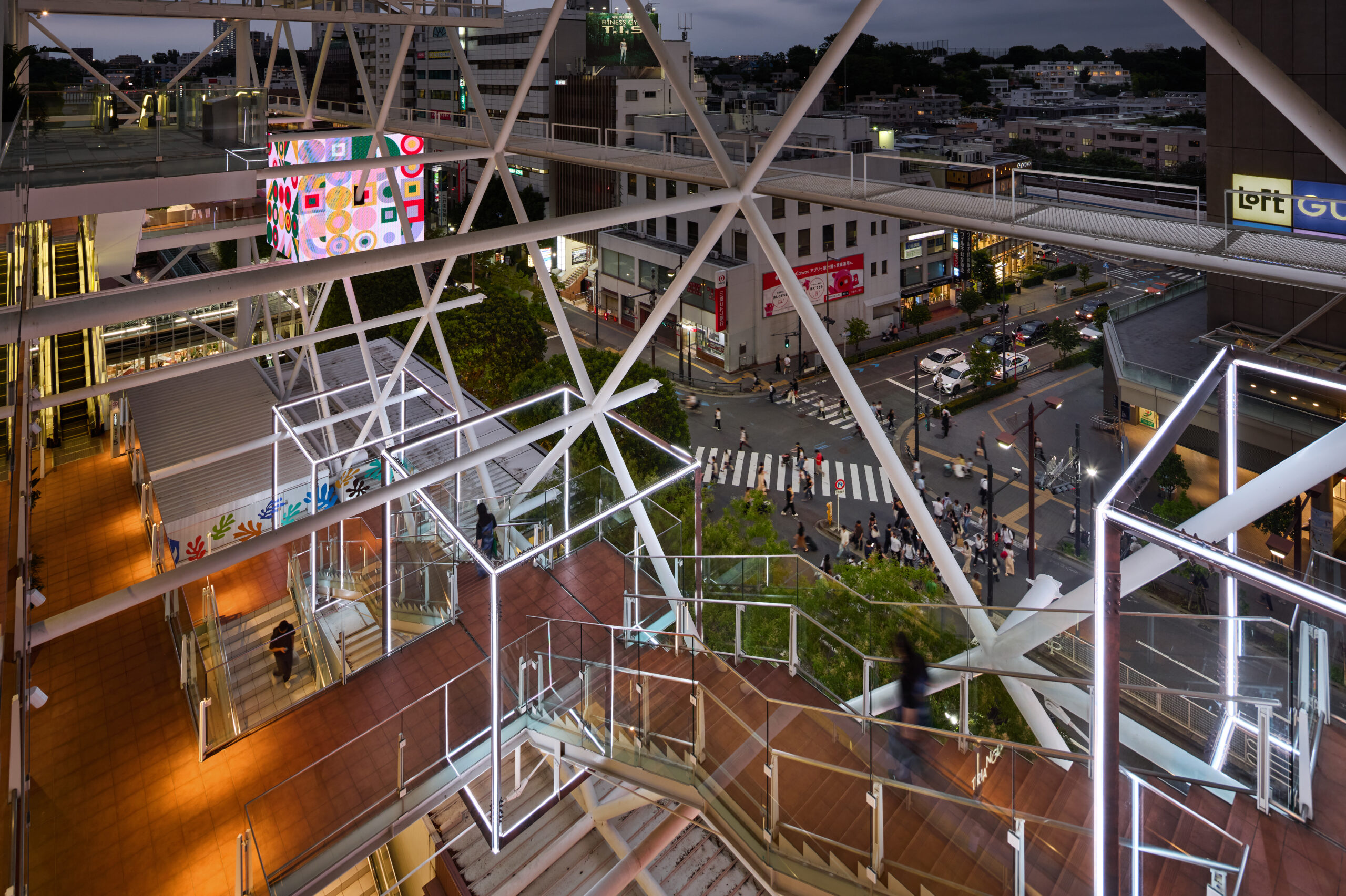

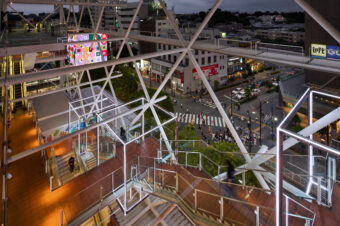

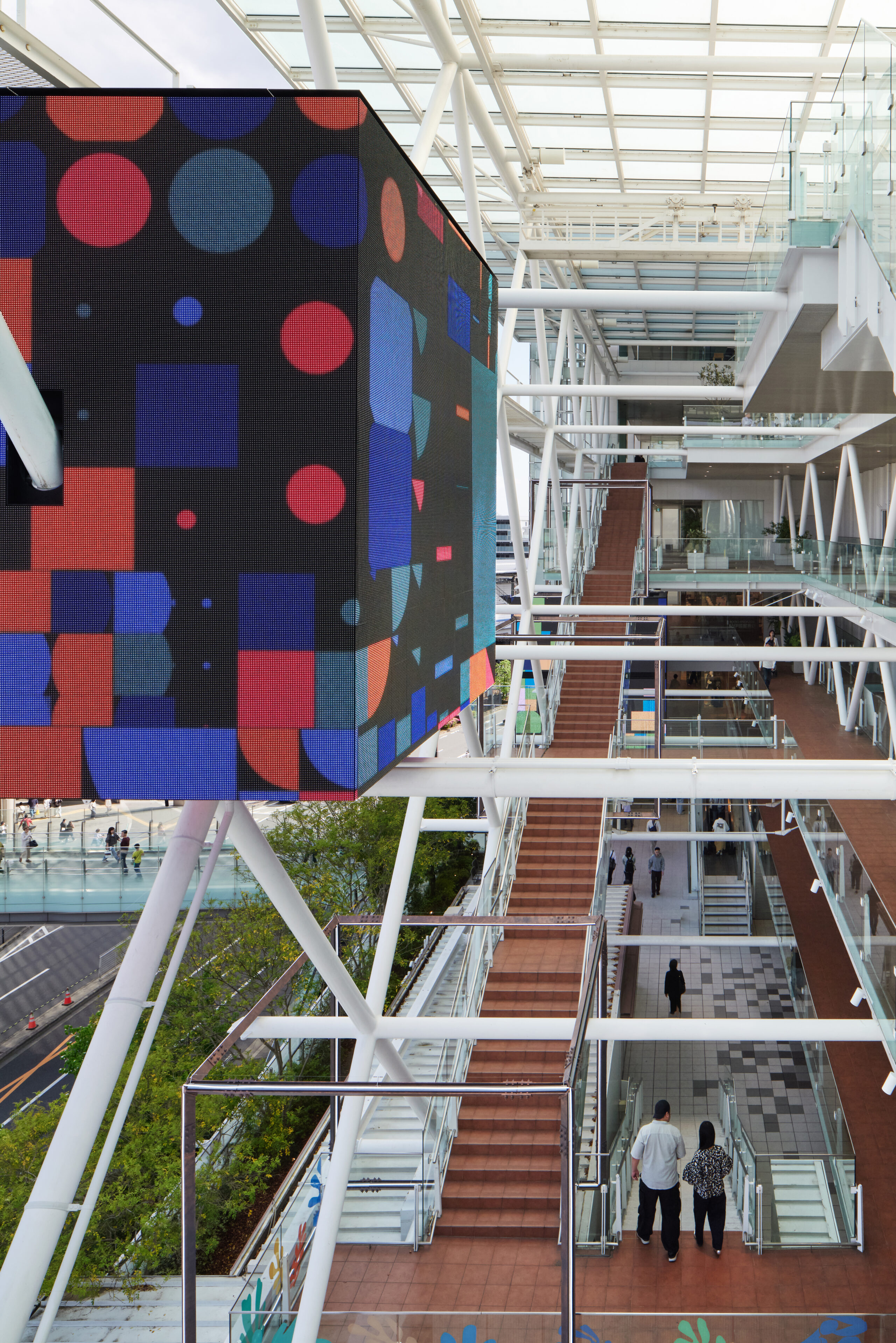

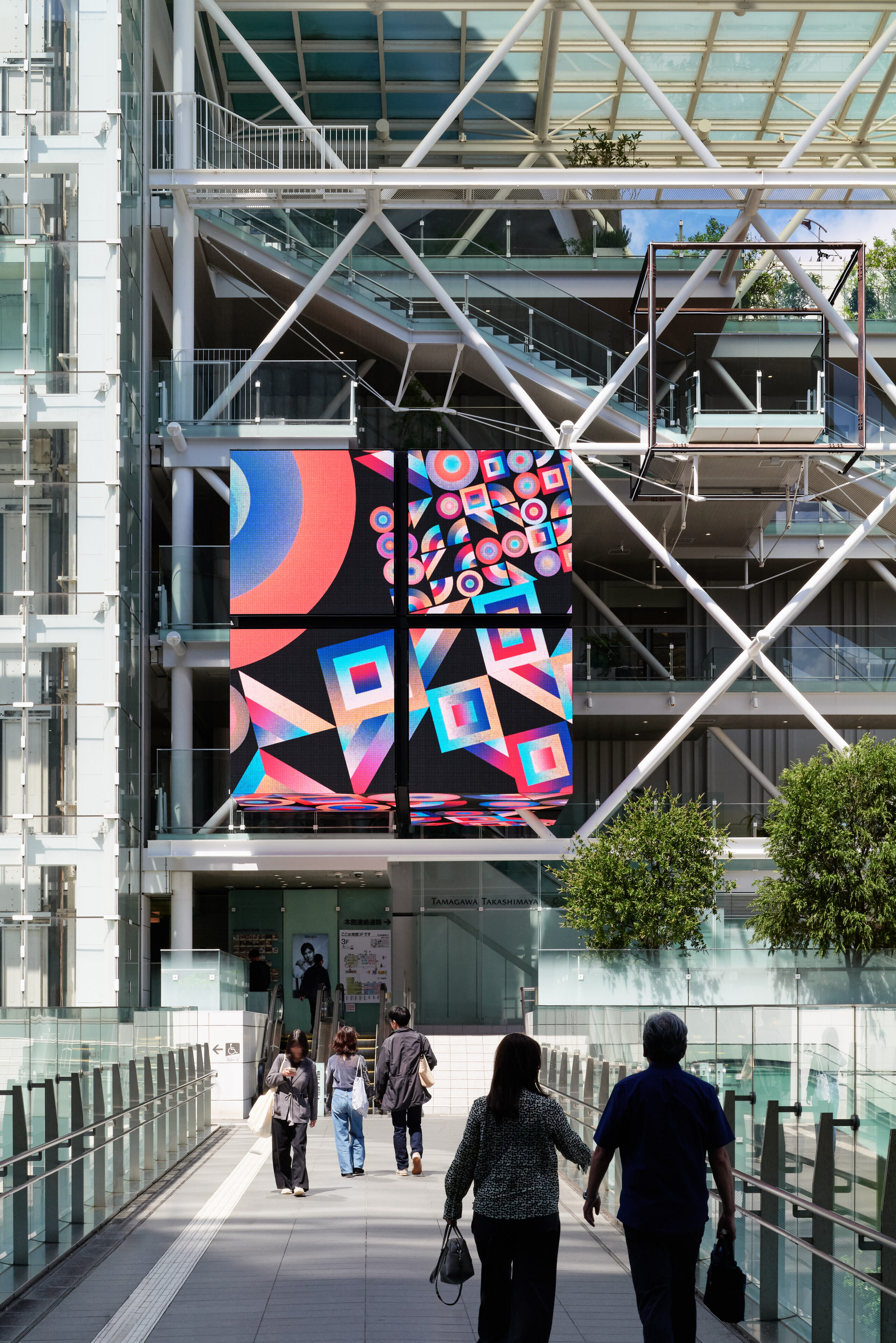

Steel-framed cubes are also placed around the staircase landings inside the atrium. These act as viewing spots or small stages, giving people new ways to look at the city and creating a sense of theater in the urban space, where people both watch and are watched.

The cubes invite people to walk around them, pass through them, and interact with them. This increases movement and activity in the space, while the three-dimensional structure also provides a flexible setting for events such as fashion shows, markets, and seasonal festivals.

This project goes beyond a simple façade renewal. It turns the building surface from a fixed “plane” into a dynamic “field,” creating stronger links with the city and opening the architecture to many kinds of activities.

Project Name

玉川髙島屋S・C南館アトリウムガーデン リニューアル Tamagawa Takashimaya S.C. South Building Atrium Garden Renewal

Information

  • Year

    2025

  • Category

    Design Category, Building Type, Design Status, Architecture, Facade, Realized

  • Status

    Built

  • Location

    東京,日本 Tokyo, Japan

  • Photo Credit

    阿野太一 DAICI ANO

  • Collaborator

    佐藤淳構造設計事務所(構造設計)

    高尾俊介(デジタルコンテンツ制作)

    NEORT(アートキュレーション・システム設計)

    安藤・間(建築施工)

    日立プラントサービス(電気設備 施工)

    乃村工藝社(LED設備 実施設計/施工)

    SOLSO(植栽工事)

    Jun Sato Structural Engineers (Structural Design)

    Shunsuke Takawo (Digital Content Production)

    NEORT (Art Curation / System Design)

    HAZAMA ANDO CORPORATION (Architectural Construction)

    Hitachi Plant Services (Electrical Equipment Construction)

    NOMURA Co., Ltd. (LED Equipment Detailed Design / Construction)

    SOLSO (Landscape Construction)
