台湾・南投県に建設された、ITRI(工業技術研究院)による経済部中台湾創新園区の中核研究施設で、noiz(ファサードおよびランドスケープ)と九典連合建築士(建築構造および内部)が共同で設計を行った。100m四方6層におよぶ建物にオフィスや各種実験施設、レストランや会議室などが混在し、方位や隣接施設などの条件とあわせ、部分ごとに異なる遮光や開放性などの条件に、4000枚以上の外装フィンの設置角度や密度を連続的に調整することで対応している。ルーバー形状や生産方法の最適化だけでなく、位置出しや設置工程に3Dスキャナやドローンの活用を提案するなど、形状決定プロセスと施工システムまで踏み込んだ新技術の実装を試みている。
Different degrees of lightness were required according to the nature of research at each laboratory in this research complex. It was not possible to adjust lightness by changing shape or size of each opening and such solution would also result in a disorganized exterior appearance. In addition, due to heavy-duty building service requirements to fulfill functions of the research facility, numerous ducts and pipes, which numbers and locations will increase in the future, would be exposed on the façades.

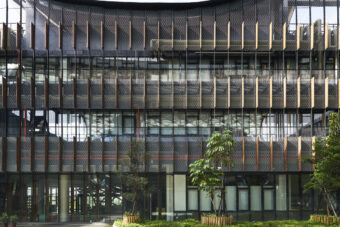

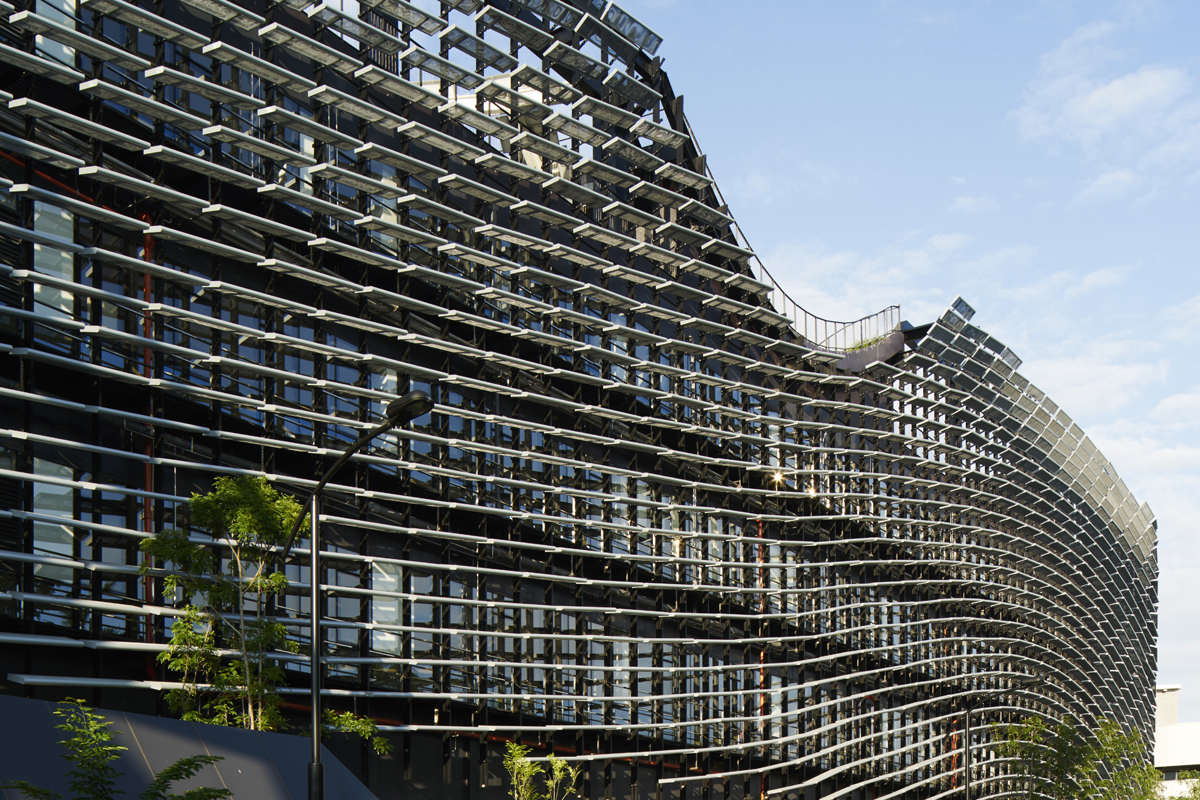

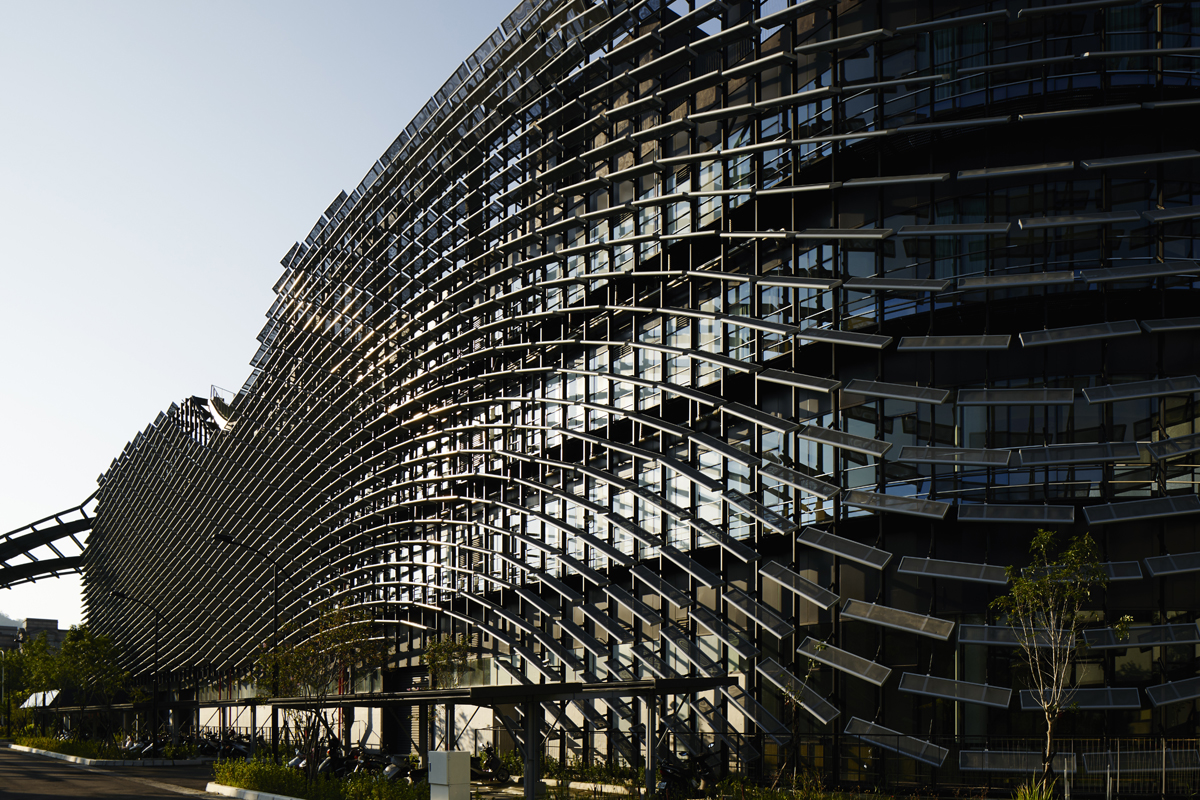

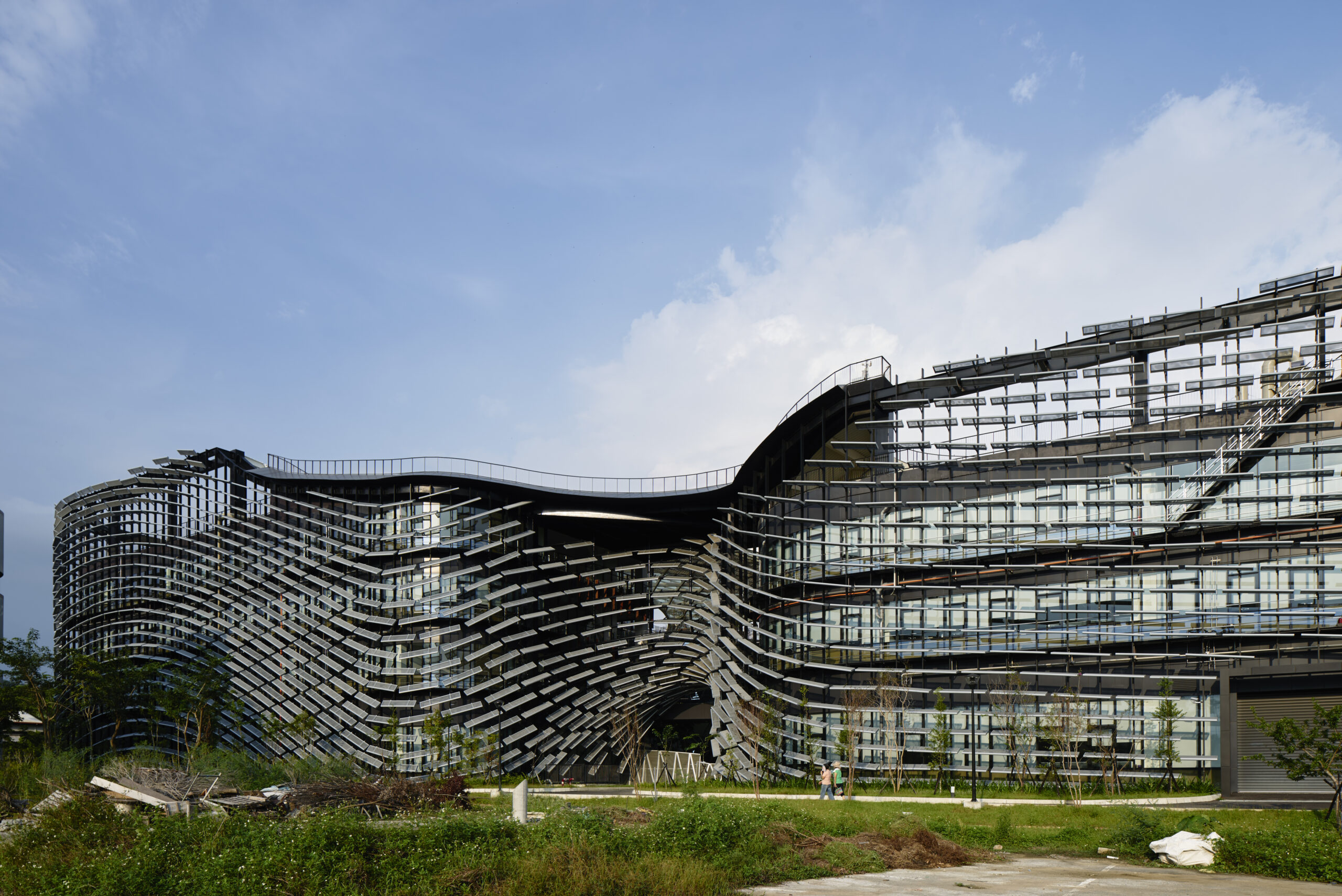

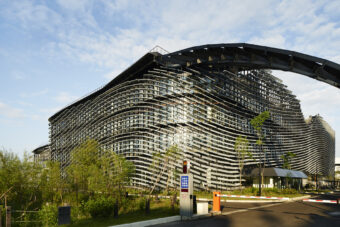

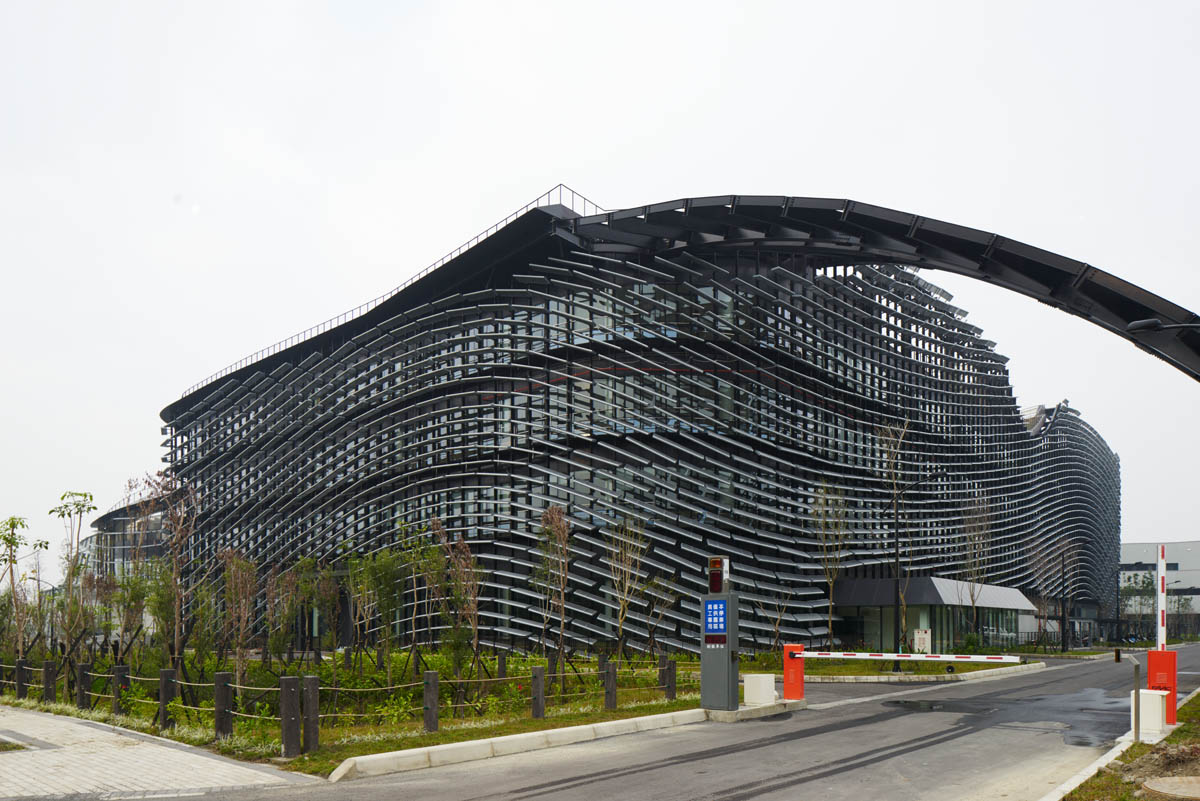

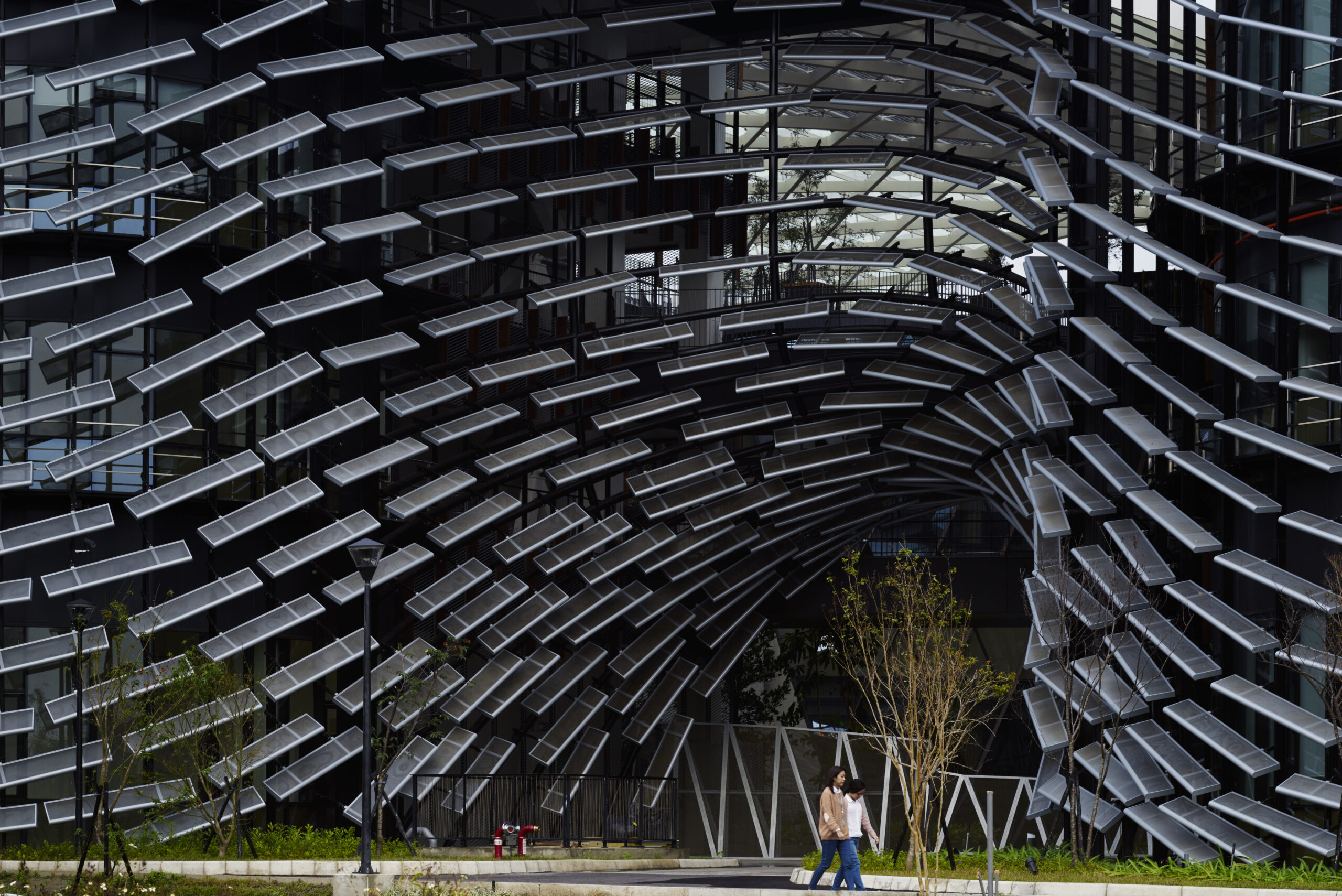

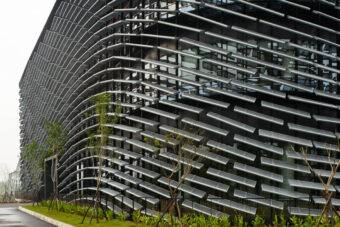

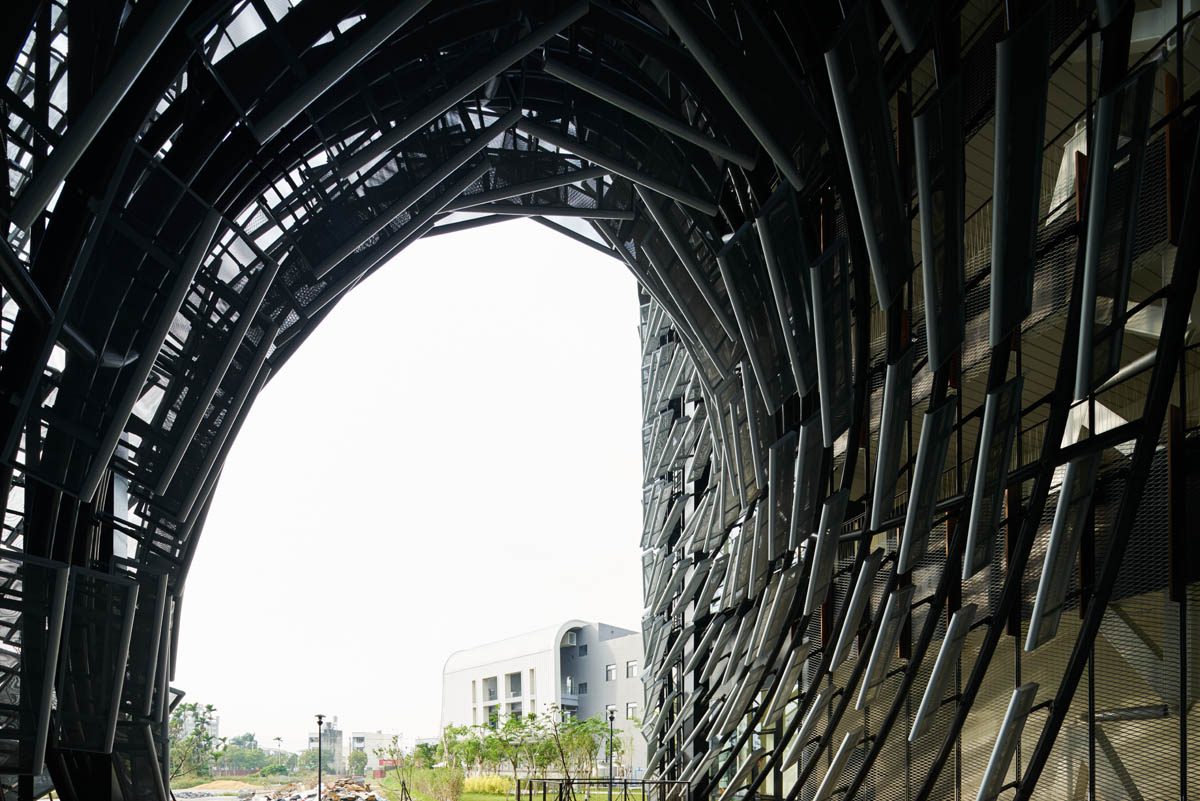

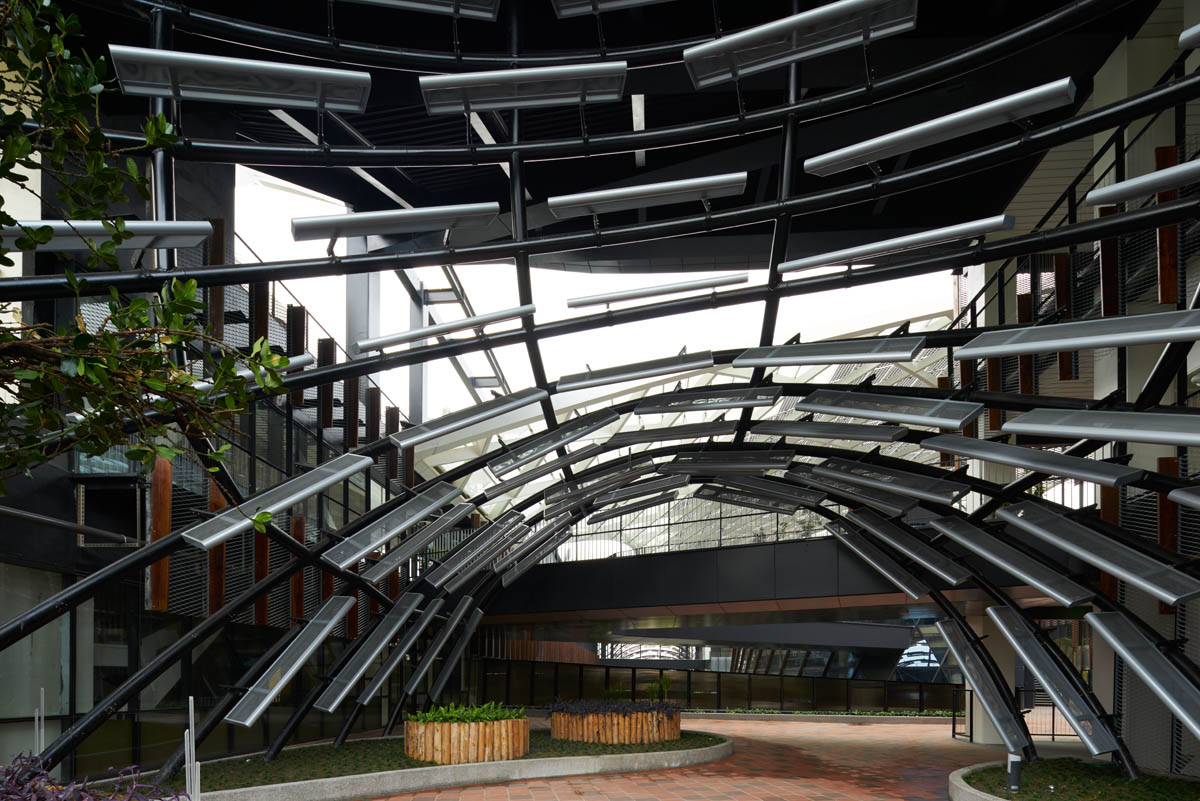

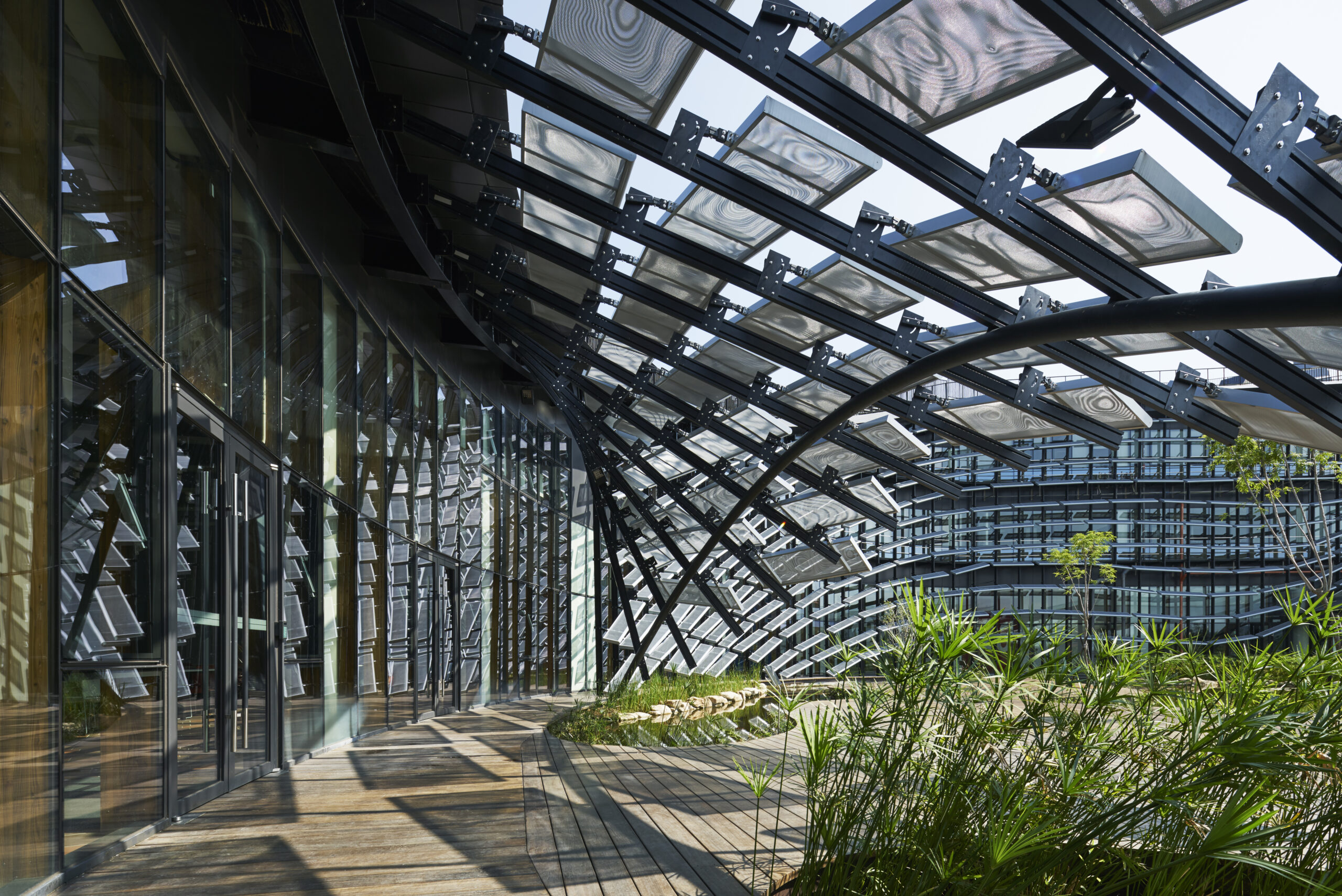

Our design solution was to provide soft veil-like facade layers composed of 4000 louvers, which are offset from curtain walls of the building. The interior light environment is controlled by adjusting densities and angles of the louvers, while the louver system gives the integrated appearance to the facility. The louvers resemble a school of fish- the louvers is positioned at various angles, while as a whole creating a large flow and giving a dynamic impression to the building.

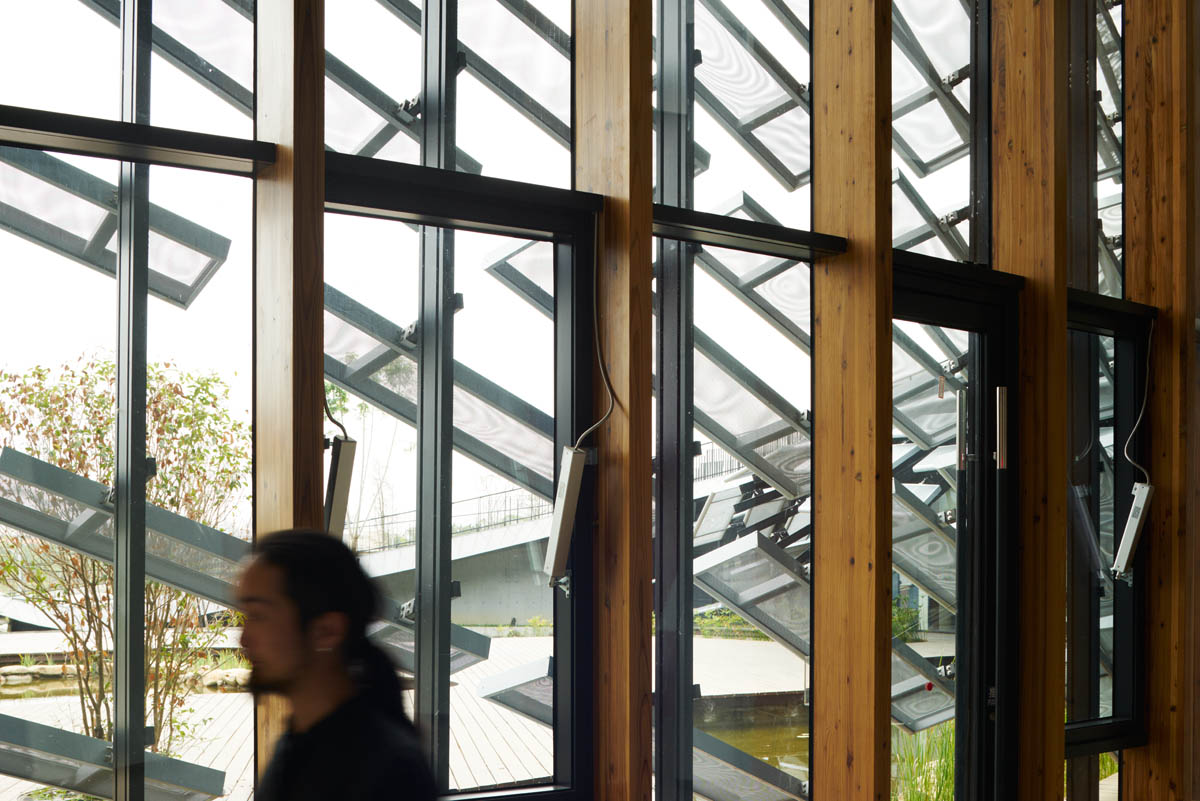

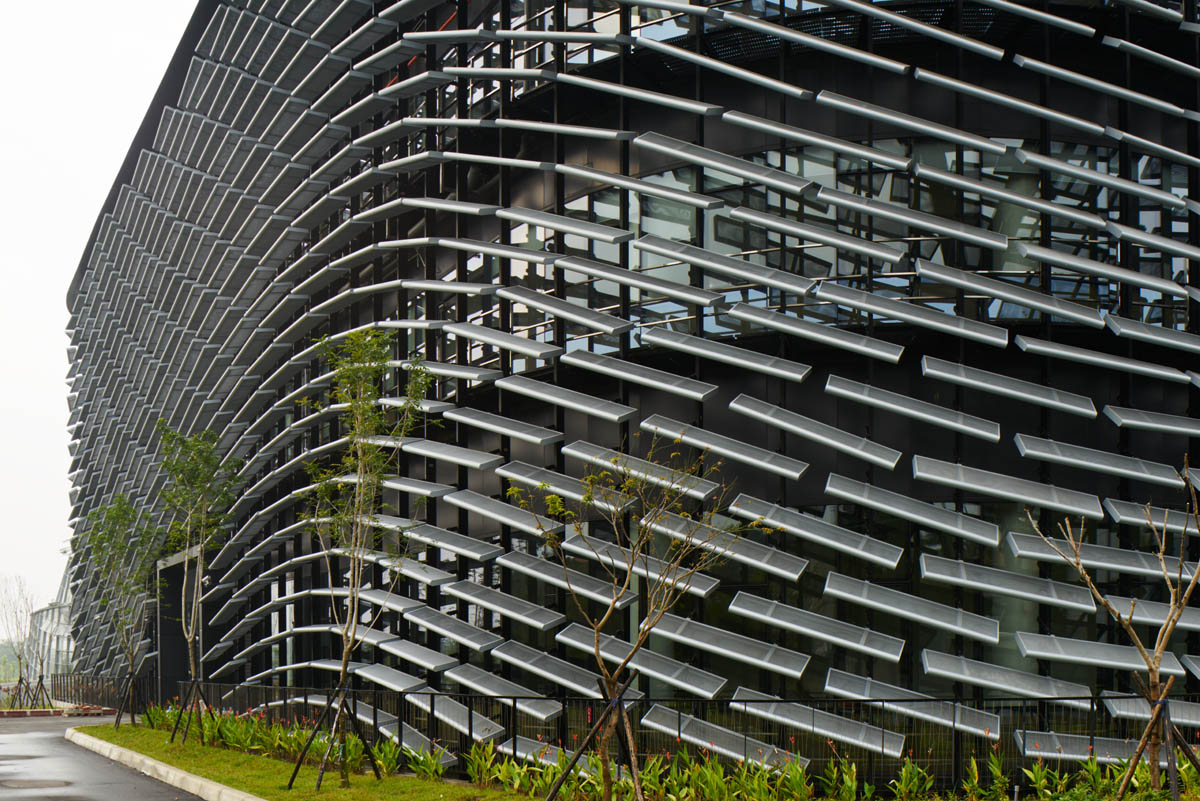

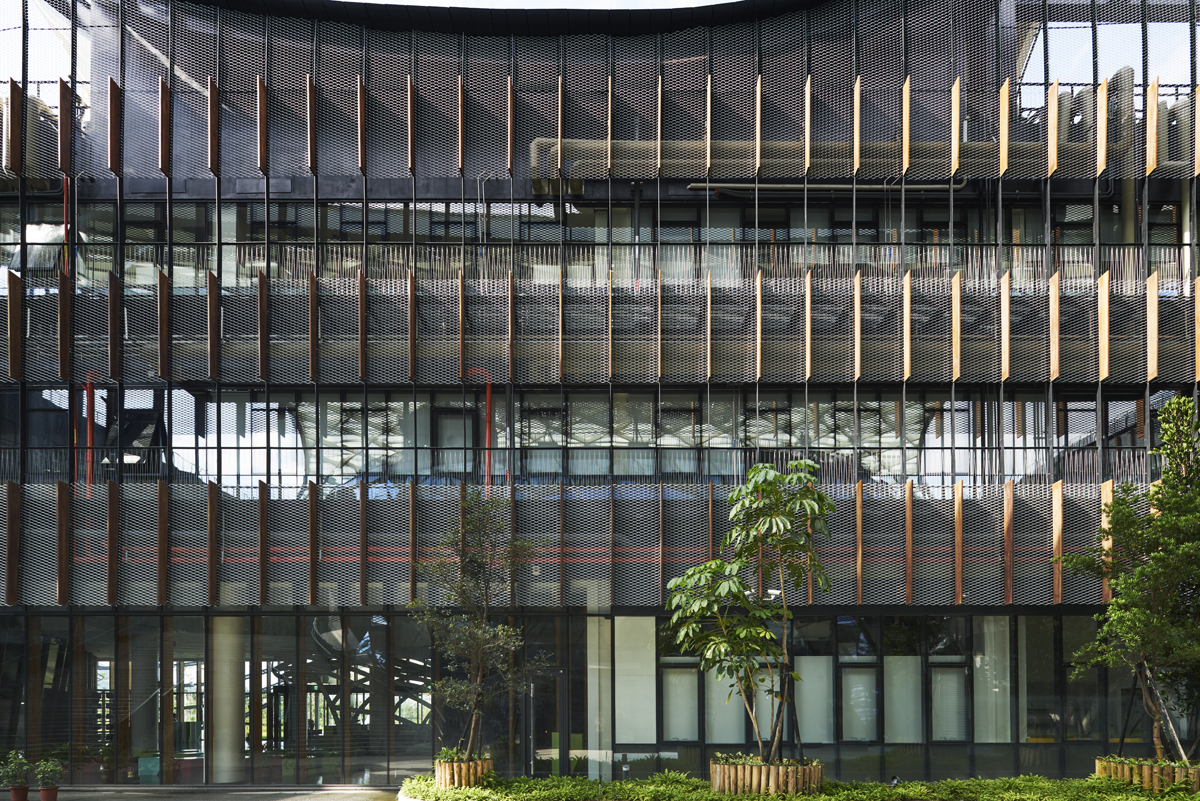

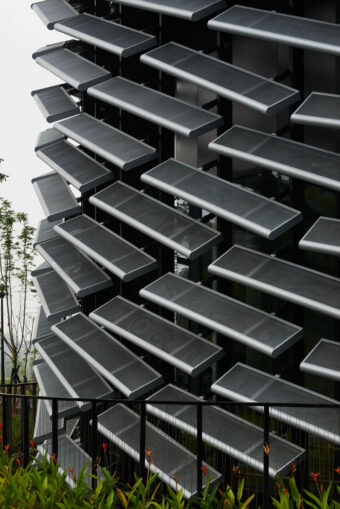

The louvers are made of perforated aluminum sheet, creating light-weight impression of the façade while allowing exterior views from the interior to some extent.
Project Name
Information
Year
2014
Category
Design Category, Facade
Status
Built
Location
台北, 台湾 Taipei, Taiwan
Photo Credit
阿野太一 Daici Ano
Collaborator
ローカルアーキテクト, 内装設計: 九典聯合建築師事務所
Architect of Record, Interior: Bio-Architecture Formosana
